Products Description
Our electric wall saws integrate high-frequency motors, reducing energy consumption by 30% compared to traditional models. The patented anti-vibration system ensures cleaner cuts in dense materials like reinforced concrete, minimizing operational fatigue

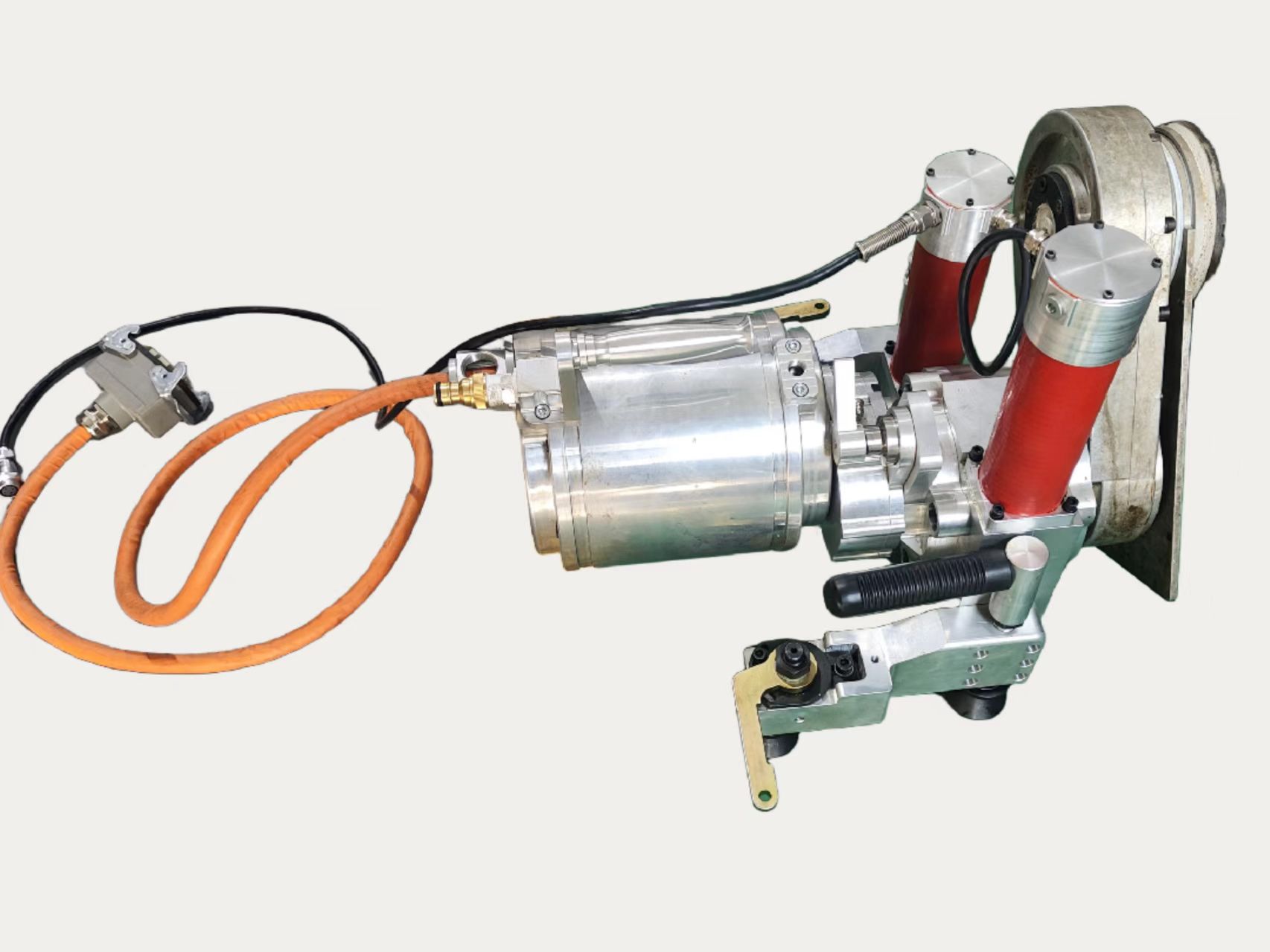

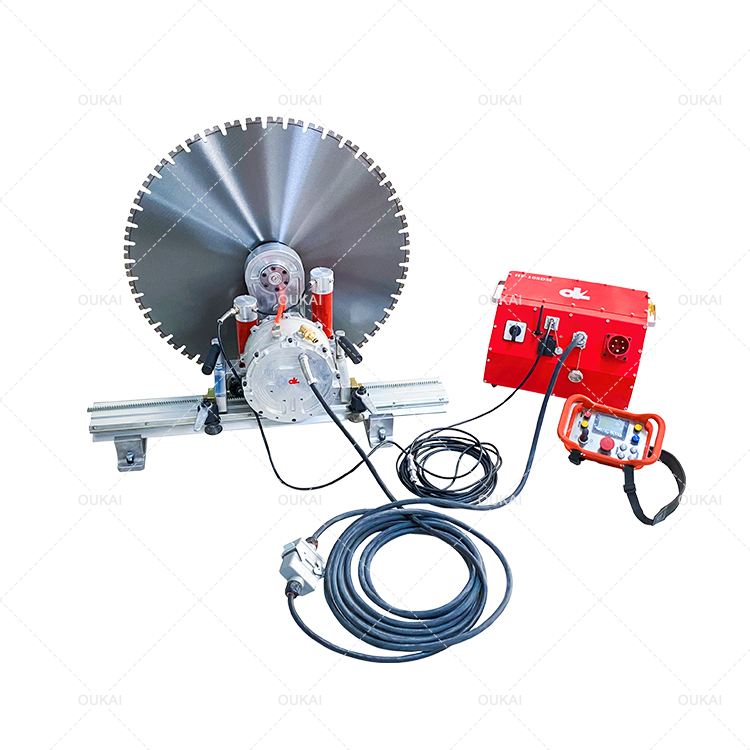

HF-105DM Electric wall saw gives you increased possibilities for fast and efficient cutting in reinforced concrete, up to 610mm. thickness. Use this wall saw for all kinds of openings and sawing including stair, bevel and flush cutting. The user-friendly ergonomic design and ease of transport make your job fast and efficient. HF-105DM can be combined with HF103DM, transforming it into a perfect wire saw.
Tags: Electric Wall Saw
Technical parameter
Concrete cutting underwater an
Metal Cutting with diamond wir
Concrete cutting case of hydra
Concrete cutting with Electric
Model：HF-105DM
Max.Power: 23kW
Design
1. Max. cutting depth : 600mm
2. Max. saw blade : φ1400mm
3. Rotatable swivel arm : 360°
4. Water: Water connection on motor
5. Flush cutting: 6 countersunk head screws,110mm graduated circle.

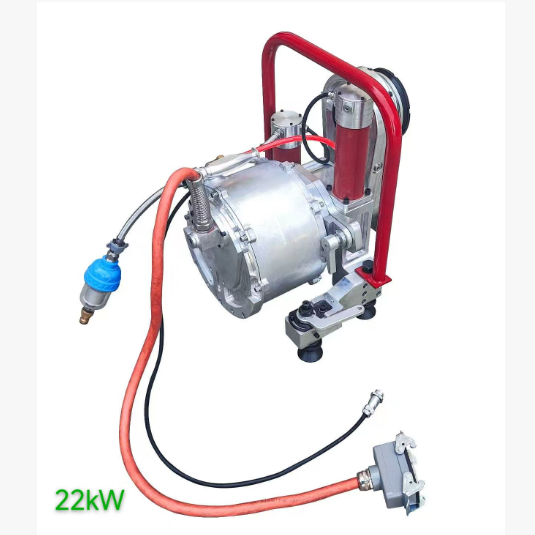

Blade drive motor
1. High-frequency, water-cooled, with quick-release device
2. Max. power : 23kW
Control unit
1. Voltage : three-phase 380V-420V (singe-phase is available)
2. Weight : 17kg
3. Wireless Remote Control : 1.5kg
Weight
1. Wall saw head: 30kg
2. Drive motor : 18kg
Cutting
There are mainly three ways for choice
1. Automatic cutting without manual intervention
2. Manual cutting
3.Speed hold（SH）cutting （Manually set a speed.And keep this speed auto-cut）
